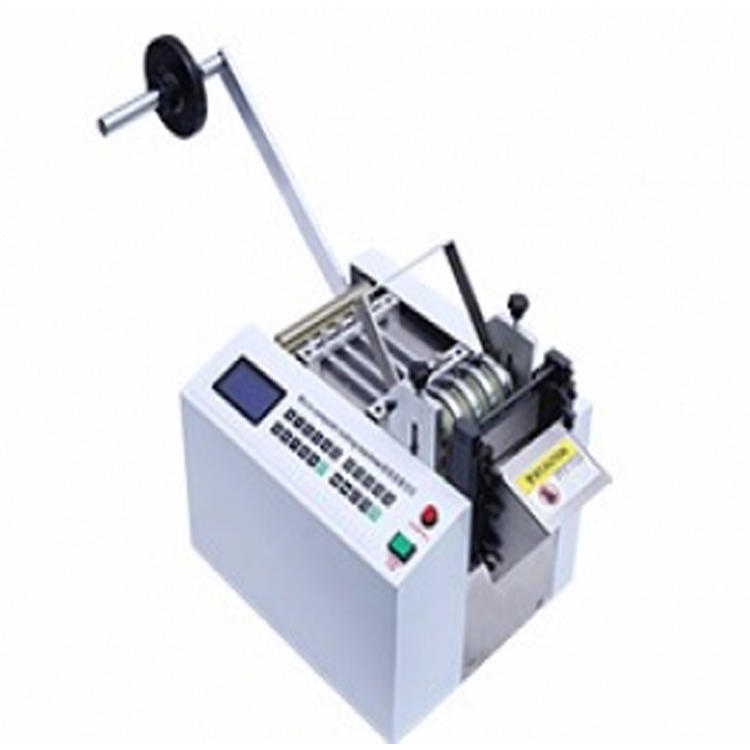

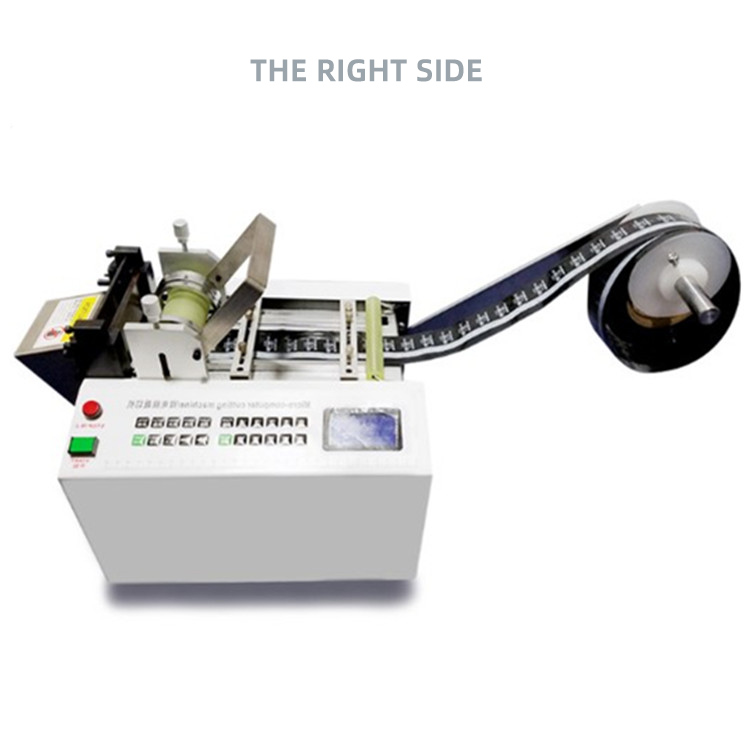

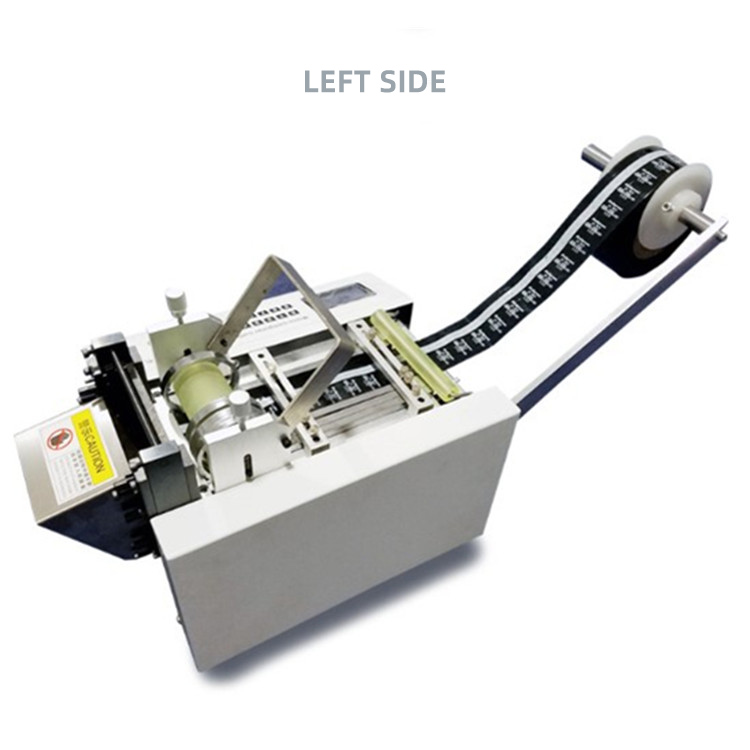

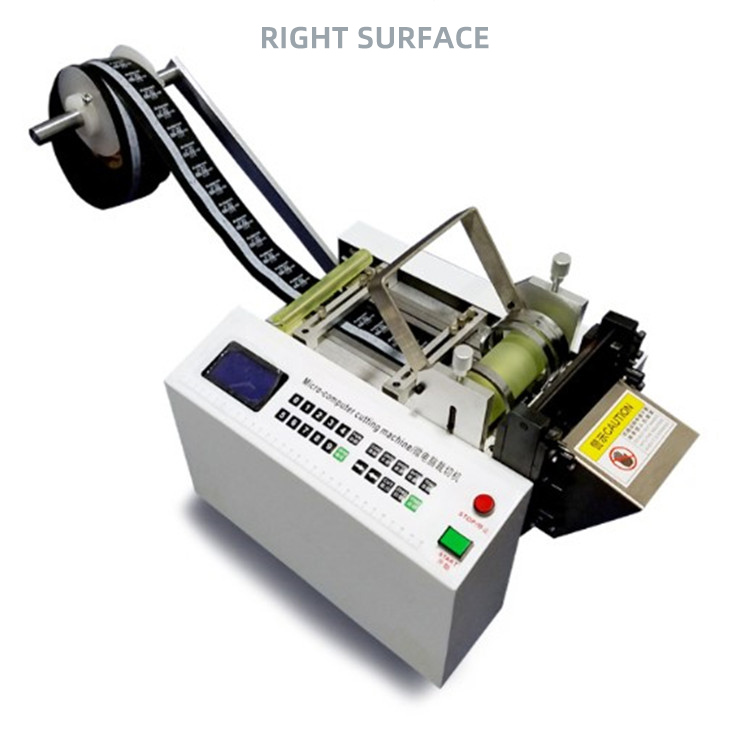

AS-100 pipe cutting machine

1. System composition
Main control board, key board, 128*64 LCD display, stepper driver, stepper motor, roller, etc
2. Technical parameters
Model: QR-100
1. Power supply: 220V 50/60HZ
2. Cut length: 0.1-----9999.9
3. Cutting width :100mm
4. Weight: 26KG
5. Specifications: Length * width * height L360*W250*H350 mm
3. Features of the machine
1. Automatic cutting heat shrink sleeve, pvc sleeve, silicone pipe, wire, wire, elastic and so on. Increase the power can cut hard thick wire rope,
2.LED large screen visual Chinese display, can accurately adjust the cutting length and cutting speed.
3. Cutter time protection, total setting, sub-set setting, sub-set pause time can be adjusted.
4. The maximum cutting width is 100mm, and the company produces cutting width 120mm, 160mm,
200mm,260mm, 300mm and other pipe cutting machine, larger can be customized according to requirements
5. Automatic shutdown without special marking. Equipped with various manual operations for easy debugging
