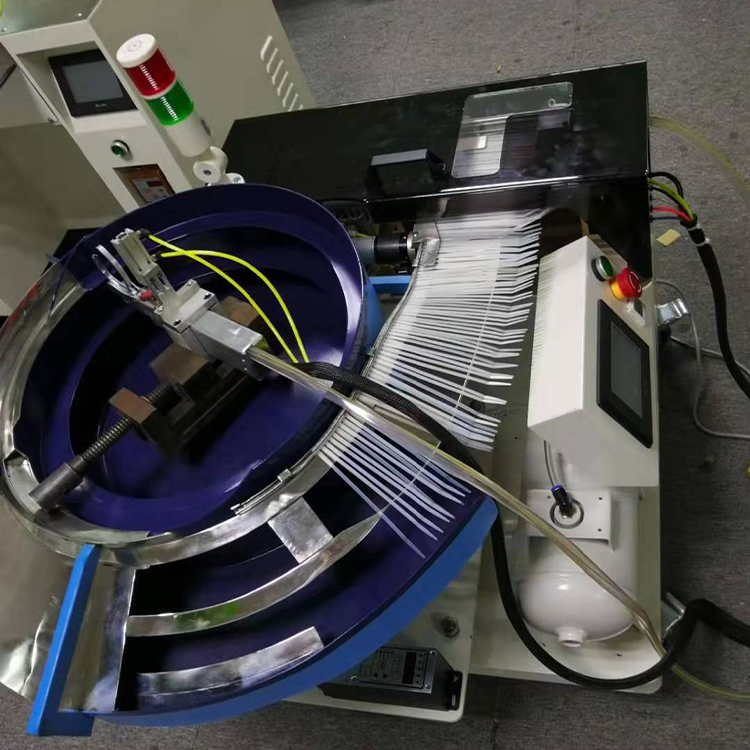

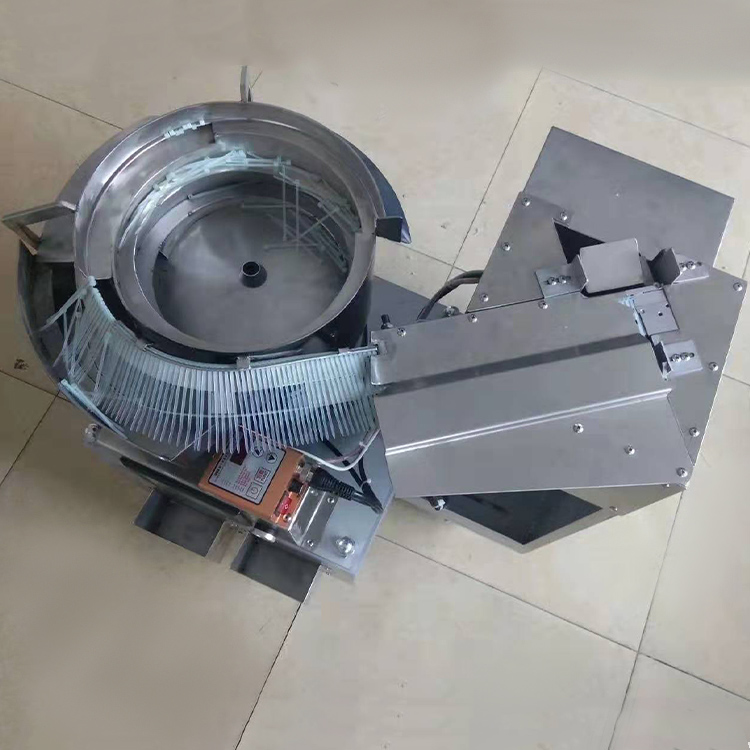

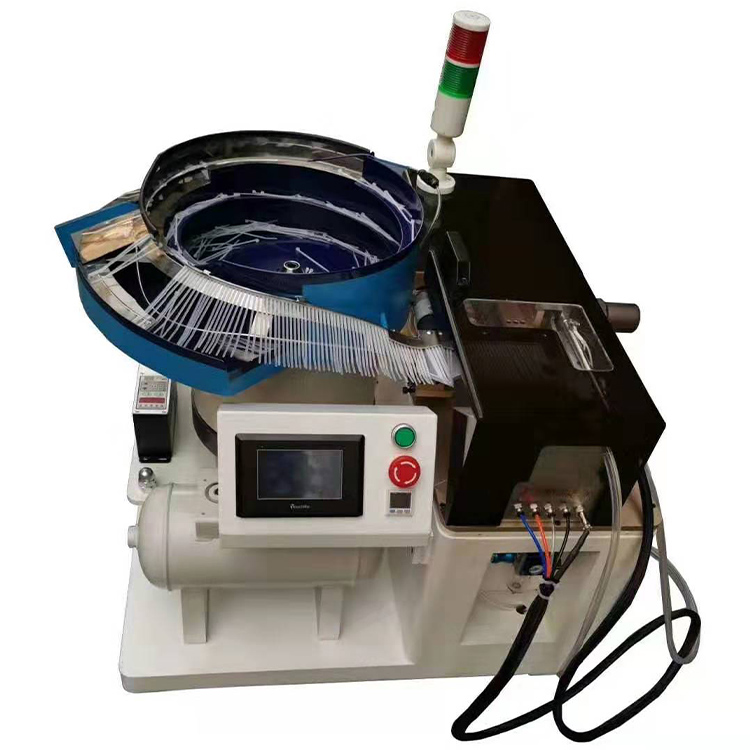

AS-NL01 Hand-held nylon cable tie

First, product name: hand-held automatic nylon binding machine

Second, the scope of application: electronic connection wire, braided network management, sleeve, branch line, etc

Third, equipment specifications:
Model: Model 100/120 /150/160
Power supply voltage :AC220V
Power frequency :50/60HZ
Rated power :100W
Application range :100mm/120mm/ 150mm cable belt
Size: Length 600* Width 600* Height 720(mm)

Total weight :120KG

Fourth, product features:
1, automatic PLC touch screen control circuit, easy to operate, good working stability
2. Automatic loading of bulk nylon cable ties

3, automatically wear the lock tie, automatically cut the tie, saving time and labor, improve the work efficiency several times.

5. Safety precautions

1, external power supply: stable 220V, 50-60HZ single-phase power supply.
2, external air source: air pressure 5.5kg-8kg, not less than 5.5KG
3. The machine is equipped with a protective shell for safety. Non-professionals should not open it at will. During the operation of the machine, the operator is strictly prohibited to put his hand on the tie hook without a protective shell, so as not to hurt his hand.
4, the handheld gun head should be handled gently, so as not to break (if artificially broken, not within the scope of warranty)
5. Since the device is controlled by touch screen, the technician should turn off the power when adjusting the machine, so as not to be accidentally touched and started by others.
6, if the machine failure, your maintenance personnel can not eliminate, please inform the company in time for maintenance.
