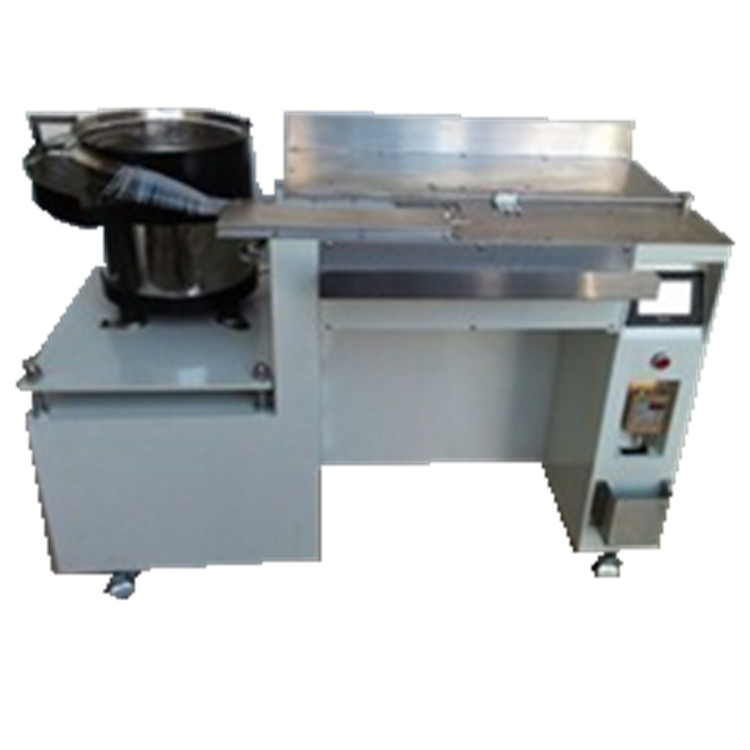

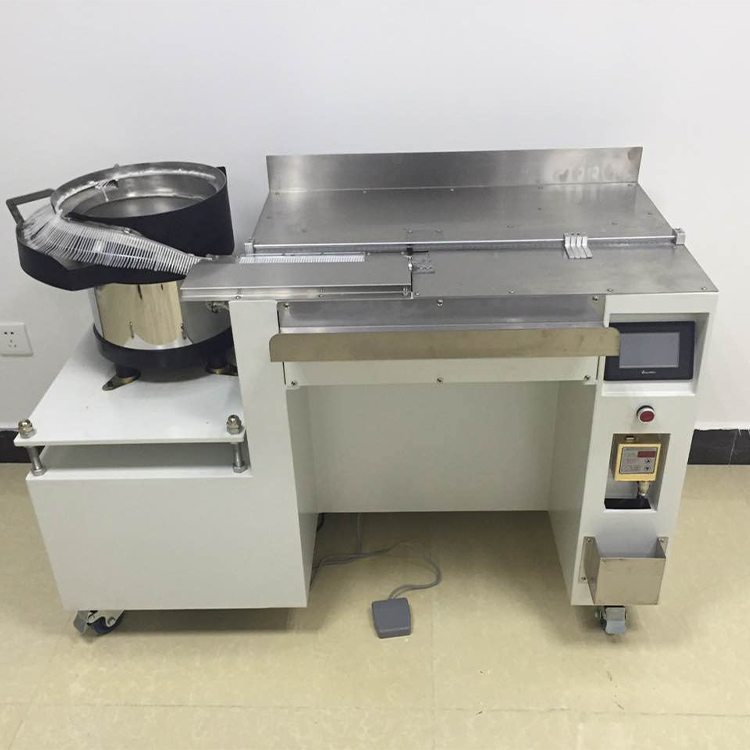

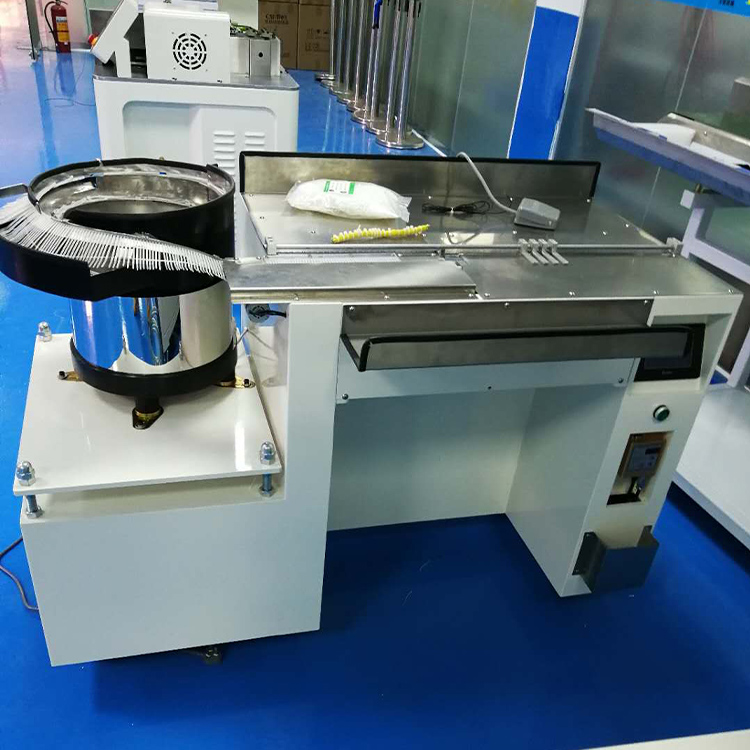

AS-NL02 Flat nylon binding machine

Model :G60 / G80 / G100 / G120/G150
Power supply voltage :AC220V
Power frequency :50/60HZ
Rated power :100W
Scope of application: 60 mm / 80 mm / 100 mm / 120 mm150mm cable ties
Size: L 1230* W 550* H 800(mm)
Total weight :150KG

Second, product features:
1, automatic PLC touch screen control circuit, easy to operate, good working stability
2. Automatic loading of bulk nylon cable ties
3, automatically wear the lock tie, automatically cut the tie, 1800 / hour, saving time and labor, improve the work efficiency several times.
4. Cable tie tightness touch screen digital adjustment
5. Touch screen digital adjustment for the tail of the cable tie
6. No pneumatic
1, bulk nylon cable tie to achieve automatic feeding, eliminating the tedious process of manual feeding;
2, automatically wear the lock tie, and automatically cut the tie, saving time and labor, at least can improve the work efficiency of more than 3 times;
3, the wiring machine for PLC, text control circuit, good working stability; Simple and convenient operation, setting and running related parameter values can be directly displayed on the PLC screen, clear and intuitive, high degree of automation, good continuity of action, fast speed, free setting of cable length, intelligent automation, just put the wound material at the cable opening, the machine automatically senses the cable, complete the cable action within one second, replacing the manual cable tying. It solves the problems caused by irregular binding, different wire sizes, slow speed and so on. Reduce hand damage, reduce human fatigue, this equipment can save more than 30% of the labor force, significantly improve the work efficiency, solve the problem of labor difficulties
Suitable for AC/DC cable, headphone cable, mouse cable, keyboard cable, power cord, various parts; In the factory with a large amount of binding, it is even more popular, and completely solves the problem of low production efficiency of the cable tie enterprise. Famous large foreign companies widely used, the United States, Gree, TCL and so on have been purchased
The company provides installation, commissioning, training, maintenance, the whole machine warranty for one year, lifelong maintenance

G type 200mm cable tie has no vibration disk match, manual discharge is required, and the efficiency of manual discharge is 600-800PCS/H
