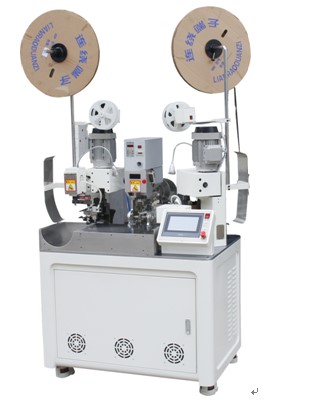

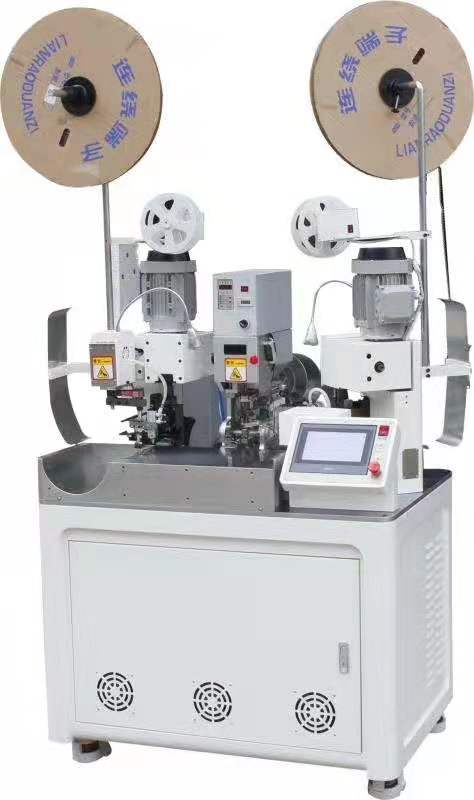

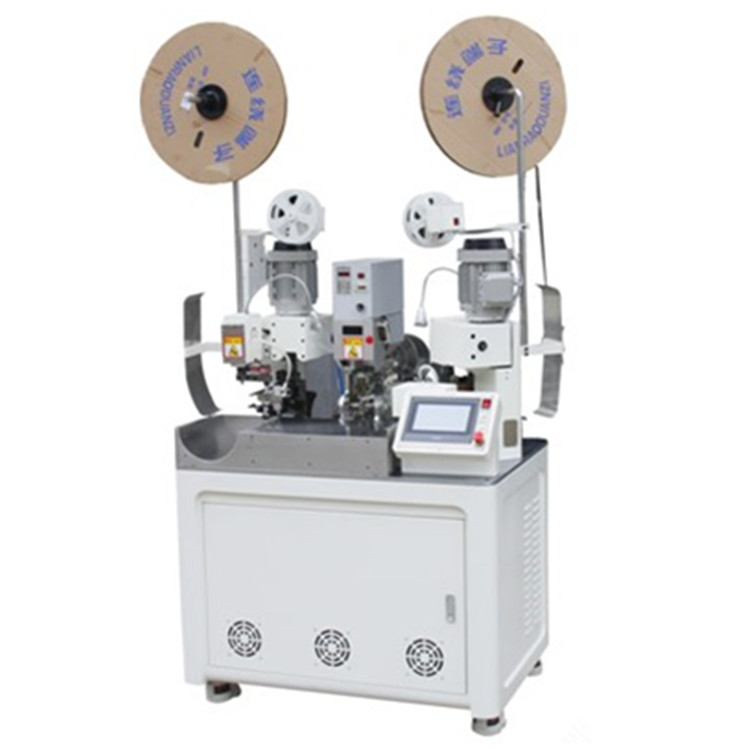

Automatic Double-End Terminal Crimping Machine with Single-End Waterproof Grommet Insertion

1. Crimping Type: Double-end terminal crimping + single-end waterproof grommet insertion

2. Wire Range: 0.25–6.0 mm² (AWG 24–10)

3. Terminal Range: Open/closed barrel, insulated/non-insulated terminals

4. Waterproof Grommet Size: Φ1.0–Φ5.0 mm (adjustable)

5. Speed: 2,000–4,500 crimps/hour (depends on wire complexity)

6. Power Supply: 220V/380V, 50/60Hz, 1.5kW

7. Air Pressure: 0.5–0.7 MPa

8. Accuracy: ±0.1 mm (crimping), ±0.2 mm (grommet position)

9. Control System: PLC + touchscreen (multi-language support)

10. Safety Features: Emergency stop, light curtains, overload protection.

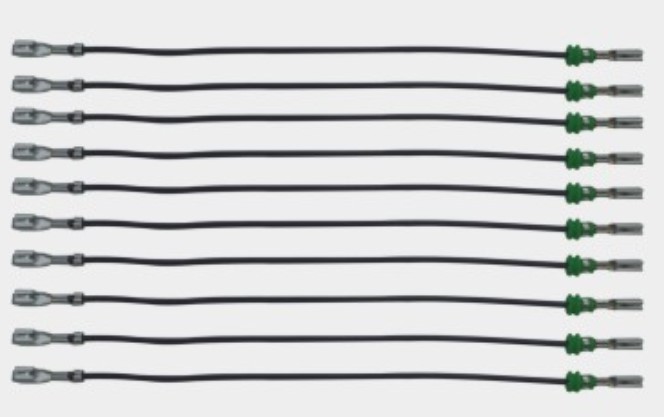

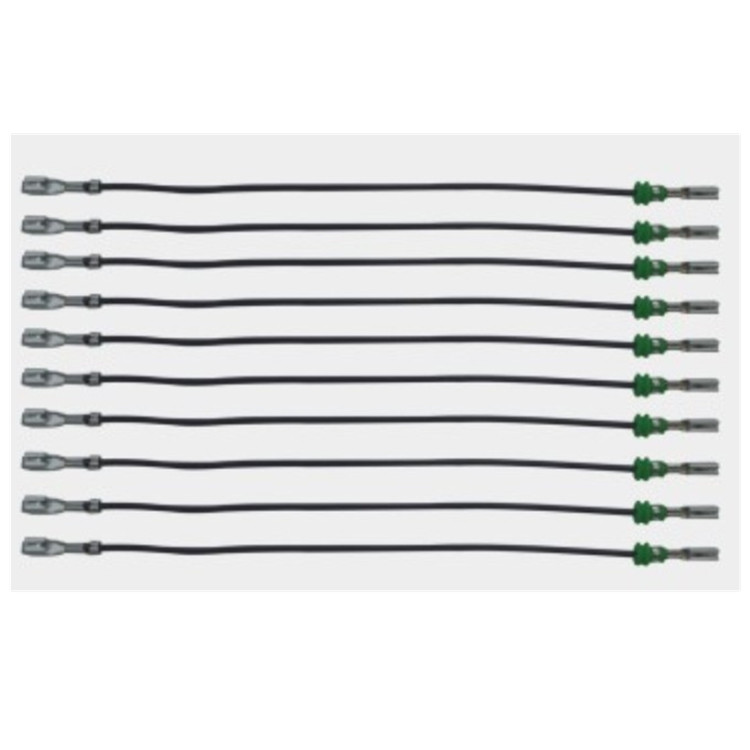

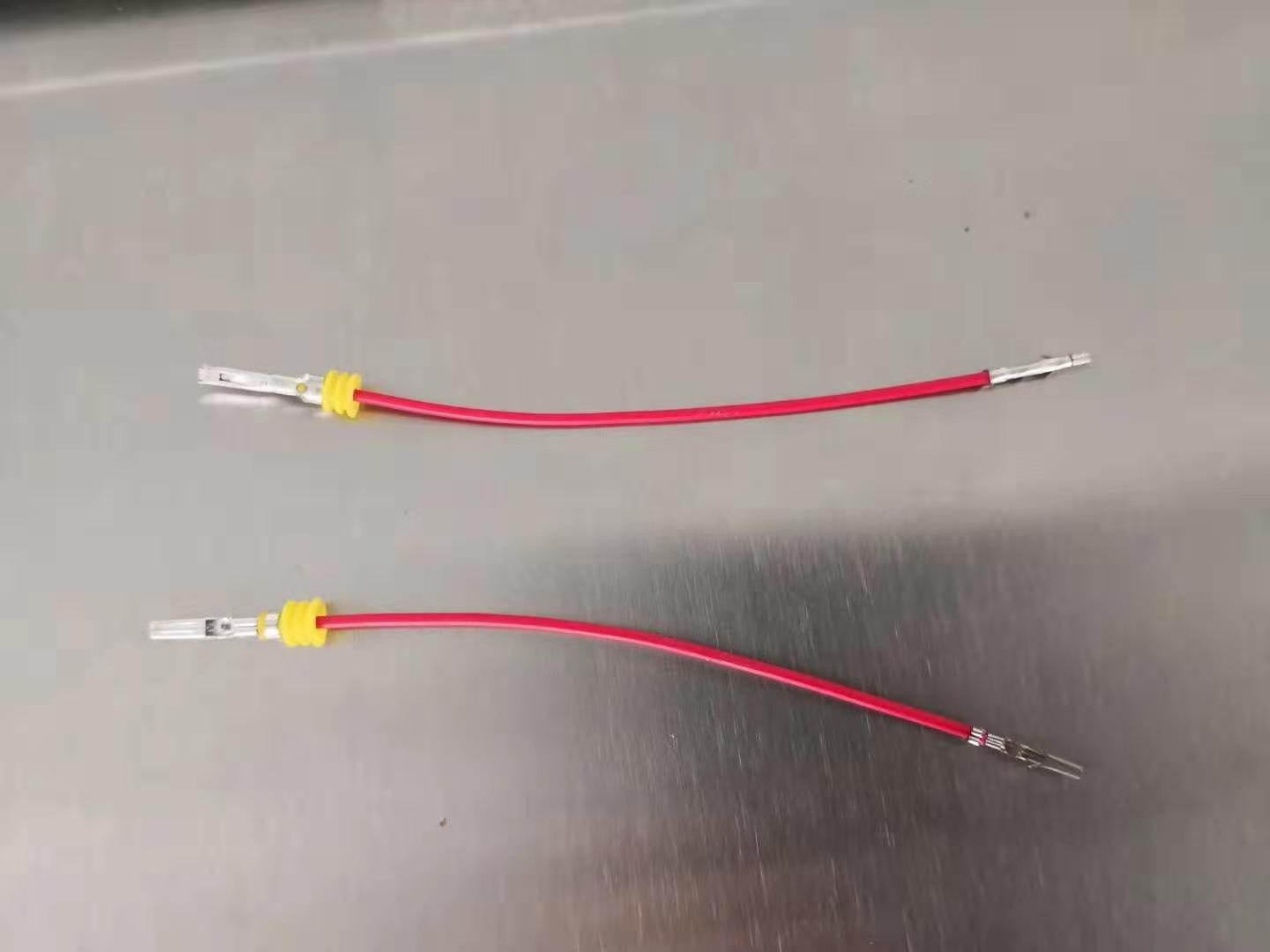

Dual Function: Crimps terminals on both wire ends while inserting waterproof grommets on one end.

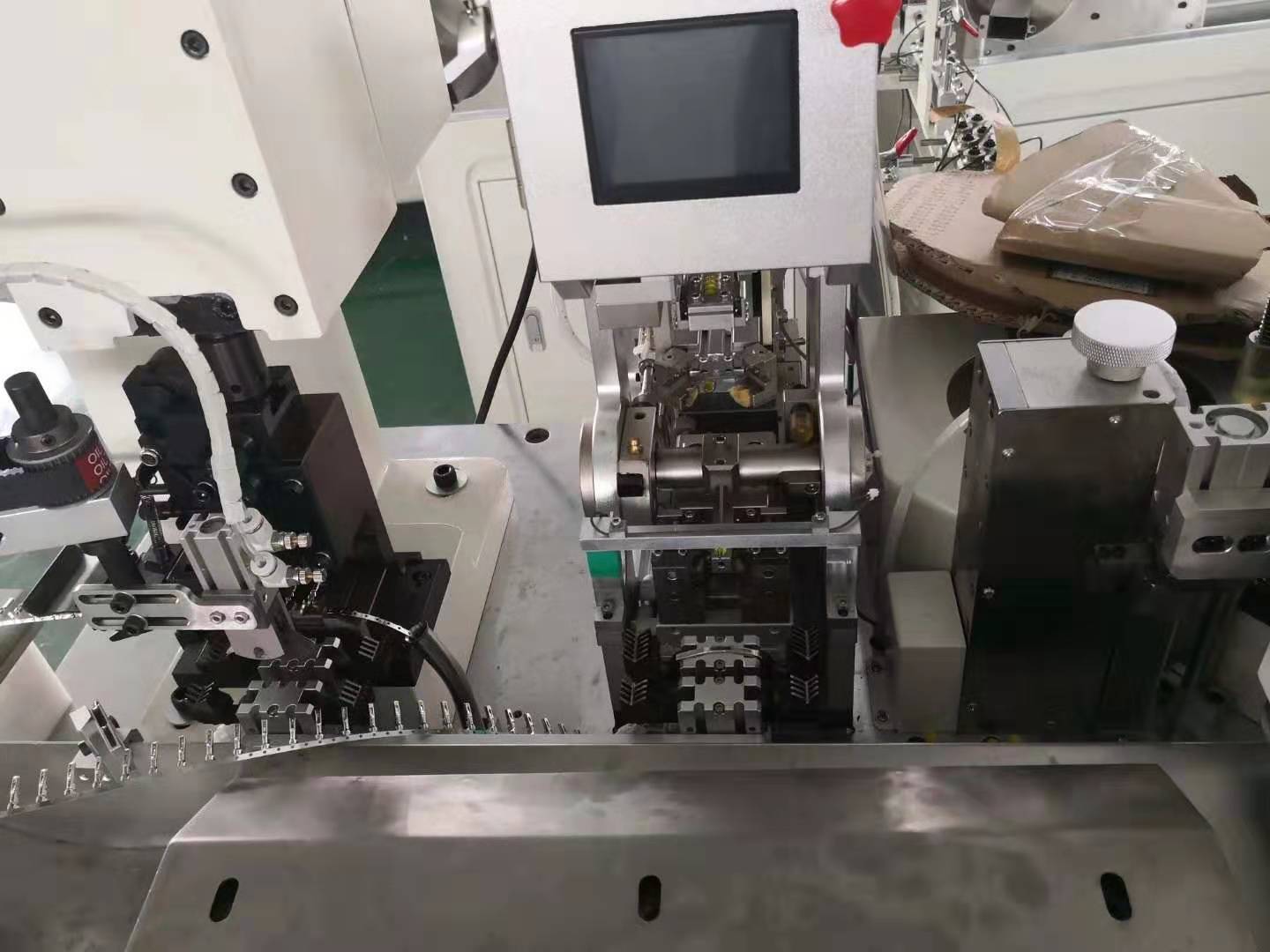

Automation: Auto wire feeding, cutting, stripping, grommet insertion, and crimping.

Compatibility: Handles PVC, silicone, or other insulated wires.

Vision System (Optional): CCD camera for grommet/terminal alignment QC.
