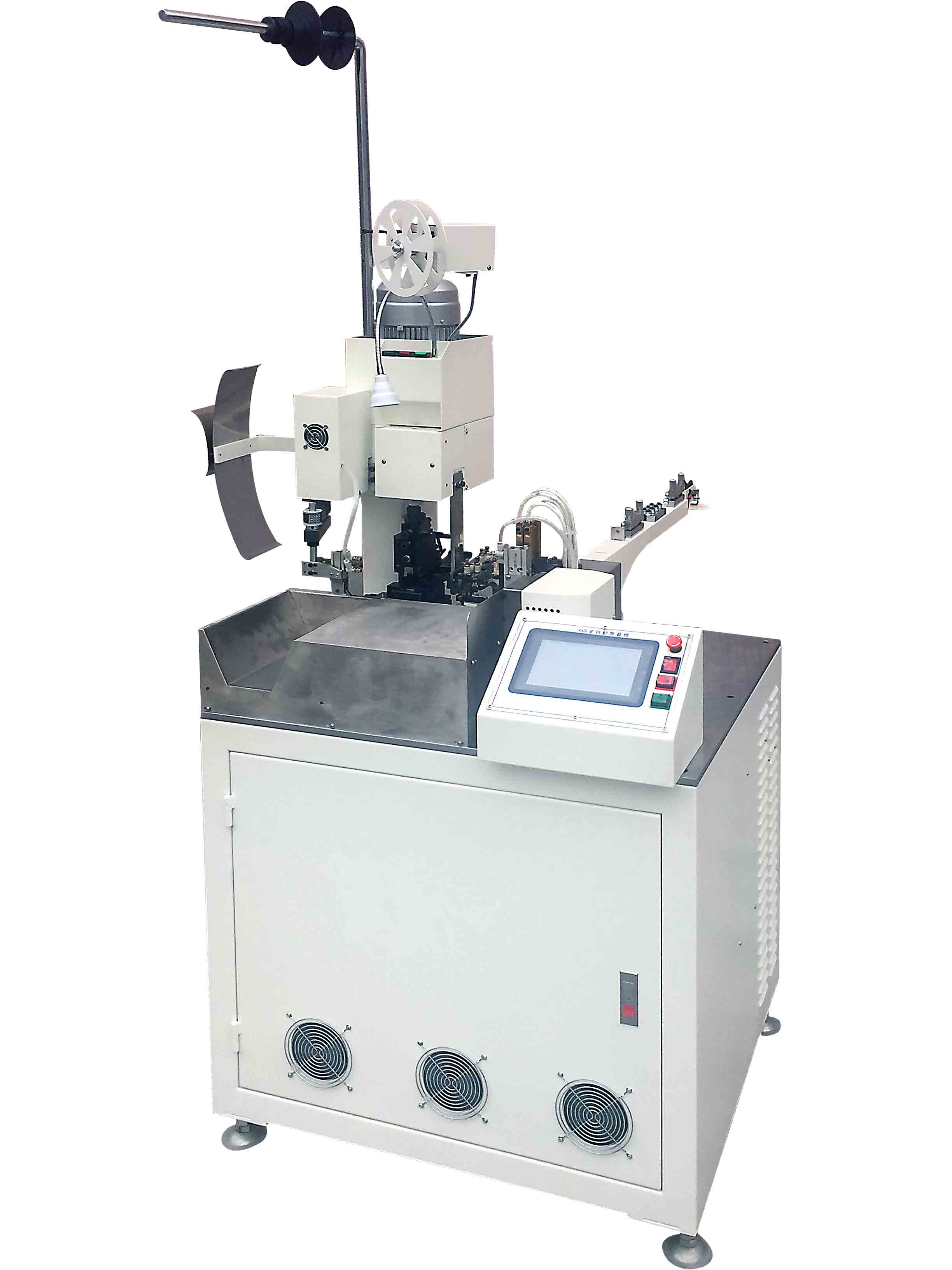

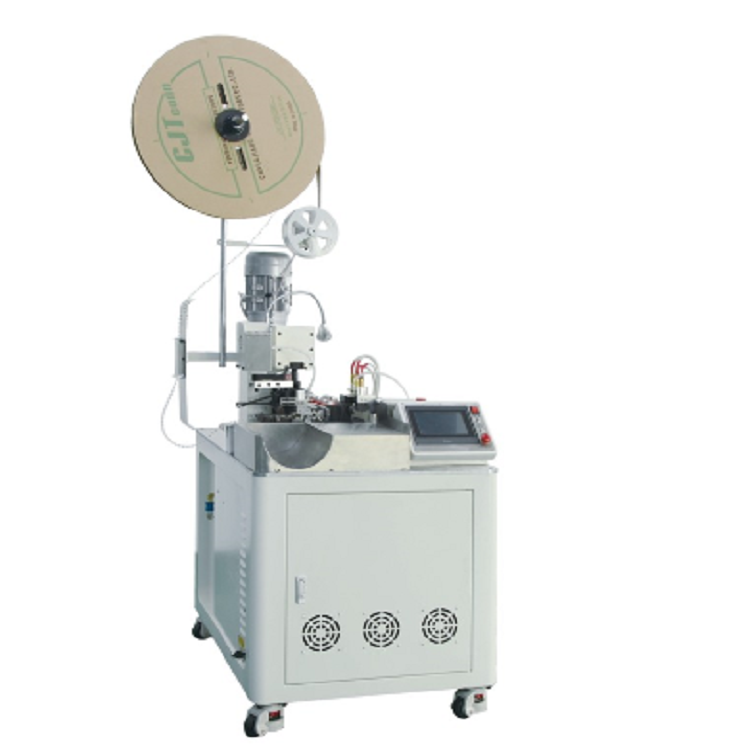

Fully Automatic Single-End Wire Crimping Machine

Technical Parameters
Model:AS-11TX
Power supply:AC220V/50/60HZ singlephase
Capacity:3000pc/hour(withalength of100-150)
Machinablewire:resistantbraidedwire(compression line)
Cuttinglength:45mm----9999mm(special lengthcan be customized)
Cutting accuracy:1mm+cut lengthx0.2% or less
Strippinglength:2.0mm---15mm
Crushing capacity:2.0tons(terminal machine)
Air pressure:4--6kgf(use dryair)
Testina device: whether the wire is detected.the terminalis pressed or notthe wire is blocked.The wire is knotted.
Bodysize:700Wx800LX1500H(mm)
Bodyweight:about 300kg
Featuredescription
1、using single-chip control,compact.compact design.Pressing machine
Hand high precision inverter control.
2、KINCOtouch screen, easy to learn and operate menu.

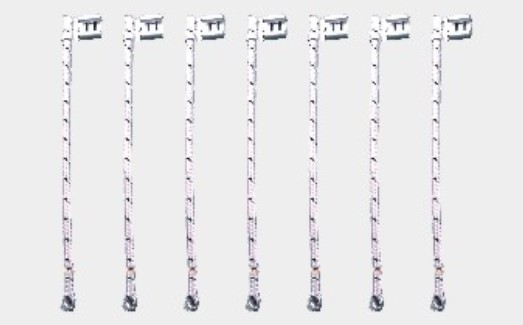

3、It can press the flag terminal and the common terminal.
4、can also solve the problem of fluoride-resistant wire headswitch,fluff is difficult to peel
5、pressing precision, waste is extremely low, saving labor.
6、Using special heating devicespecial bladeprocessing can be reduced
Machine oxidation failure.
7、Full digital debugging,cost-effective.
