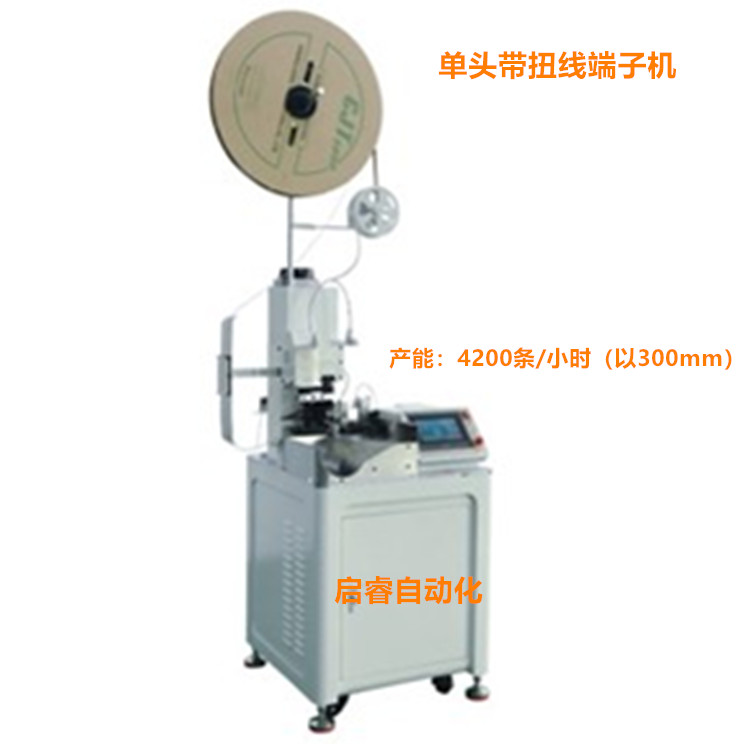

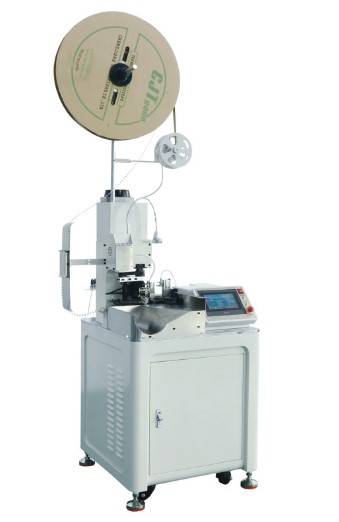

FDGS11 Automatic Terminal Machine with Single-End Waterproof Seal

Product : FDGS11 Automatic Terminal Machine with Single-End Waterproof Seal

The FDGS11 Automatic Terminal Machine is a highly efficient and precise automated device designed for wire processing. It features functions such as wire cutting, single-end stripping, double-end stripping, and single-end waterproof seal insertion. With its compact design, cost-effectiveness, and ease of maintenance, the FDGS11 is an ideal choice for the wire processing industry.

Key Features:

1. Compact and Smart Design: Small footprint, suitable for various working environments.

2. KINCO Touchscreen Operation: User-friendly interface with an intuitive menu for easy operation.

3. Quick Changeover of Processes and Materials: Increases production efficiency and reduces downtime.

4. High-Efficiency Stepper Drive: High precision and fast speed ensure superior processing quality.

5. Easy Maintenance: Designed for simplicity, making maintenance straightforward.

6. Cost-Effective: Excellent performance at a reasonable price.

7. Fully Digital Debugging: Simplified debugging process with intelligent operation.

Product Specifications:

• Model: FDGS11

• Power Supply: AC220V/50/60HZ Single Phase

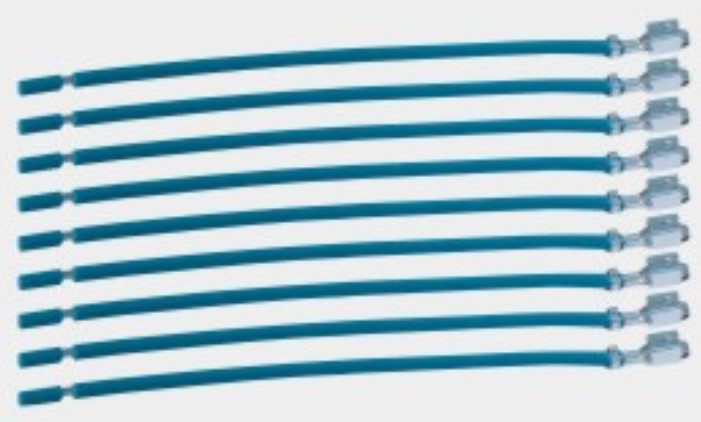

• Functions: Wire cutting, single-end stripping, double-end stripping, single-end waterproof seal insertion

• Production Capacity: 3000 pieces/hour (for wires up to 100mm in length)

• Applicable Wire Range: AWG#28 - AWG#16

• Cutting Length: 50mm - 9999mm

• Cutting Precision: 1mm + 0.2% of the cutting length

• Stripping Length: 1.5mm - 10mm

• Crimping Force: 2.0T/3.0T Terminal Machine

• Air Pressure: 4-6kgf (requires clean, dry air)

• Detection Devices: Wire presence detection, terminal crimping detection, wire blockage detection, low air pressure detection

• Machine Dimensions: 700W800L1500H (mm) (Single-End Waterproof Seal)

• Machine Weight: Approximately 348kg

Applications:

The FDGS11 Automatic Terminal Machine is widely used in industries such as electronics, electrical appliances, and automotive wiring harnesses. It is particularly suitable for wire processing scenarios that require high precision and efficiency.

Why Choose FDGS11?

• High Efficiency: Processes up to 3000 wires per hour, significantly boosting production efficiency.

• Precision Processing: High cutting accuracy and adjustable stripping length ensure product quality.

• User-Friendly Operation: Touchscreen interface is easy to use, reducing training costs.

• Easy Maintenance: Modular design simplifies maintenance, lowering equipment upkeep costs.
