Automaticmachinedoubleheadscrimpingoneheadsealing

1.Smart and compact design,small land occupation

2.PC touch screen with English menu

3.Easy to change applicator and materials

4.High efficiency, high preciseness, fast speed

5.Easy maintenance

6.Cost friendly

7.All digital debugging

Get A Quote

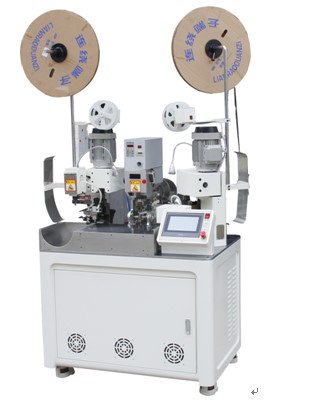

Name: Automatic machine double heads crimping, one head sealing

Power source: AC220V/50HZ

Function: cable cutting, two heads or one head stripping, two heads or one head crimping, one head sealing

Output: 3000pcs/hour (Length: 100mm)

Applicable cable range: AWG16-28#(bigger or smaller cables, we offer customized machine)

Cutting range:50-9999mm(special requirement is acceptable for customizing)

Stripping length:1.5-10mm

Crimping force: 2.0T

Air pressure:4-6kgf, need dry and clean air

Detective device: optical fibre sensor, cable or terminal absence, air pressure, cable knotting or blocking

Machine size: 700*1000*1500mm

Net weight: 368KG
