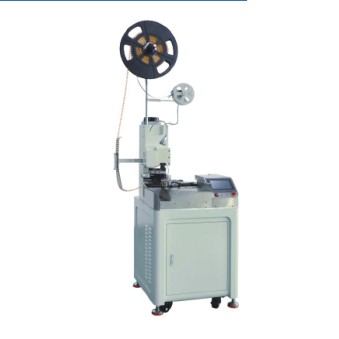

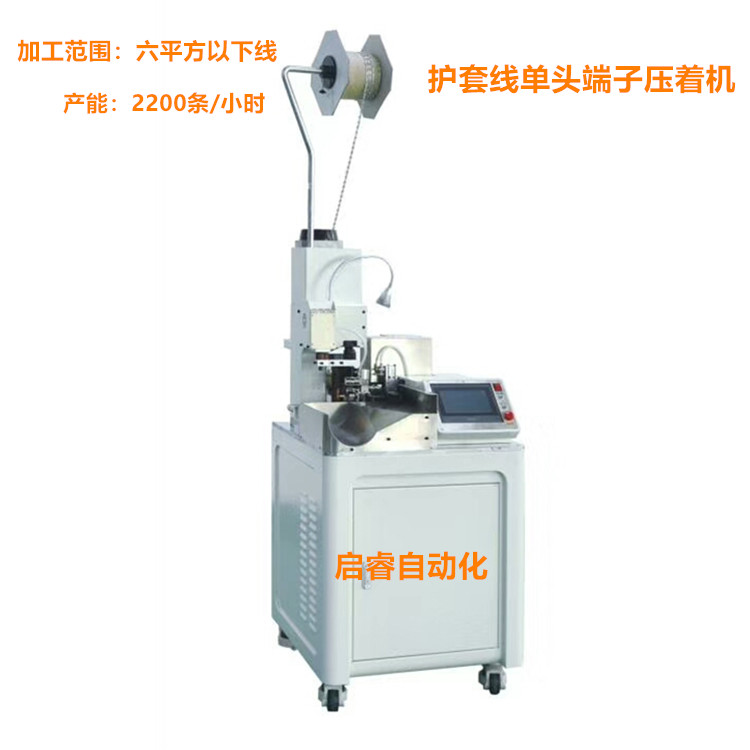

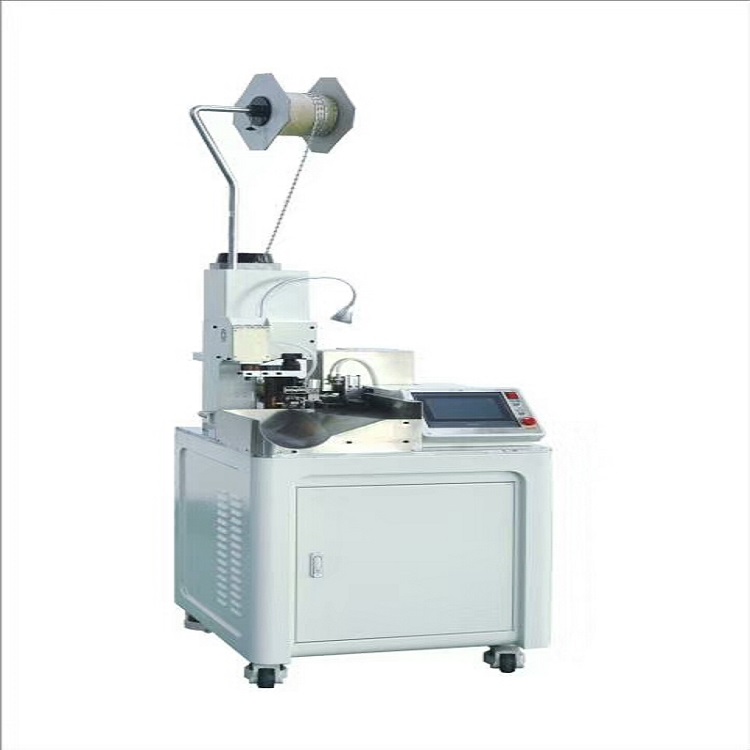

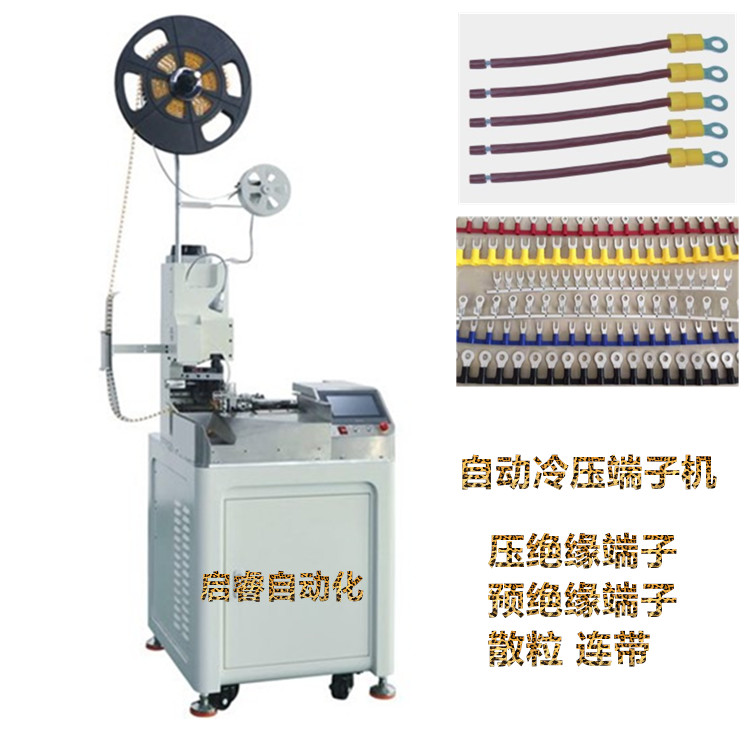

Fully Automatic Single-End Insulated Terminal Crimping Machine
Feature description
1.Exquisite, compact design, excellent conception and small floor area.
2.Chinese operation menu of computer touch screen is easy to learn and understand
3.The replacement process and materials are fast.
4 high efficiency step driving,high precision and high speed.
5.Convenient maintenance.5,Easy maintenance.
6.High cost performance6cost-effective.
7. Full digital debugging
Technical parameters Model:as-11l
Power supply:AC220V/ 50 / 60Hz single phase simplex

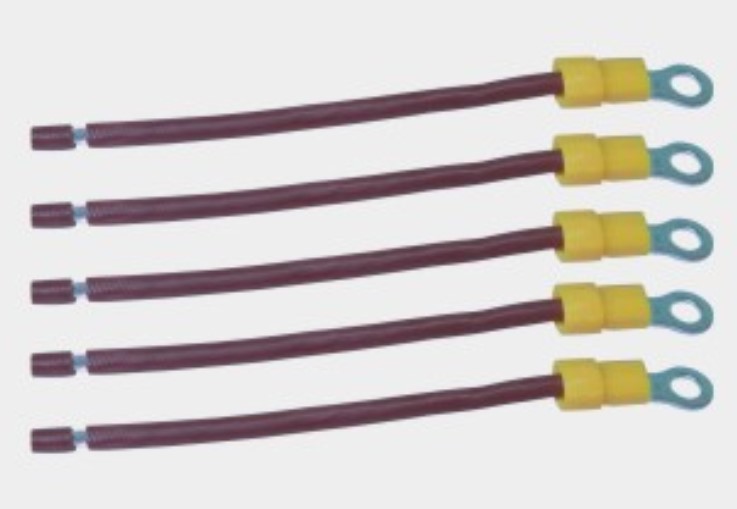

Functions: wire cut, stripped twisted wire at both ends, single end crimped leather terminal
Capacity:2200 pieces / hour (within100mm in length)
Machine wire range: awg8-awg28 (under 6 square meters)
Cutting length:45mm-9999mm (special length can be customized) Cutting accuracy: range of change: 1mm + cut length * 0.2% 1 or less Peel length: 1.5m-10mm
Pressing capacity:2.0 (optional 2.5t terminal machine) 2.0 tons(additional optional 2.5t terminal machine) Air pressure: 4-6kgf (use dry air)
Detection device: whether the wire is detected, whether the terminal air pressure is detected, whether the wire is blocked.Air pressure detection
Dete ction device:Whether the wire is detected,the terminal air
pressure is not detected,the wire is blocked,and the air pressure is detected.
Mr inch body size:650W x700lx 1500h(mm) Body weight: about 308kg
Power supply:AC220V/ 50 / 60Hz single phase simplex
Functions: wire cut, stripped twisted wire at both ends, single end crimped leather terminal
Capacity:2200 pieces / hour (within100mm in length)
Machine wire range: awg8-awg28 (under 6 square meters)
Cutting length:45mm-9999mm (special length can be customized) Cutting accuracy: range of change: 1mm + cut length * 0.2% 1 or less Peel length: 1.5m-10mm
Pressing capacity:2.0 (optional 2.5t terminal machine) 2.0 tons(additional optional 2.5t terminal machine) Air pressure: 4-6kgf (use dry air)
Detection device: whether the wire is detected, whether the terminal air pressure is detected, whether the wire is blocked.Air pressure detection
Dete ction device:Whether the wire is detected,the terminal air
pressure is not detected,the wire is blocked,and the air pressure is detected.
Mr inch body size:650W x700lx 1500h(mm) Body weight: about 308kg
