Fully Automatic Terminal Machine Double Ended

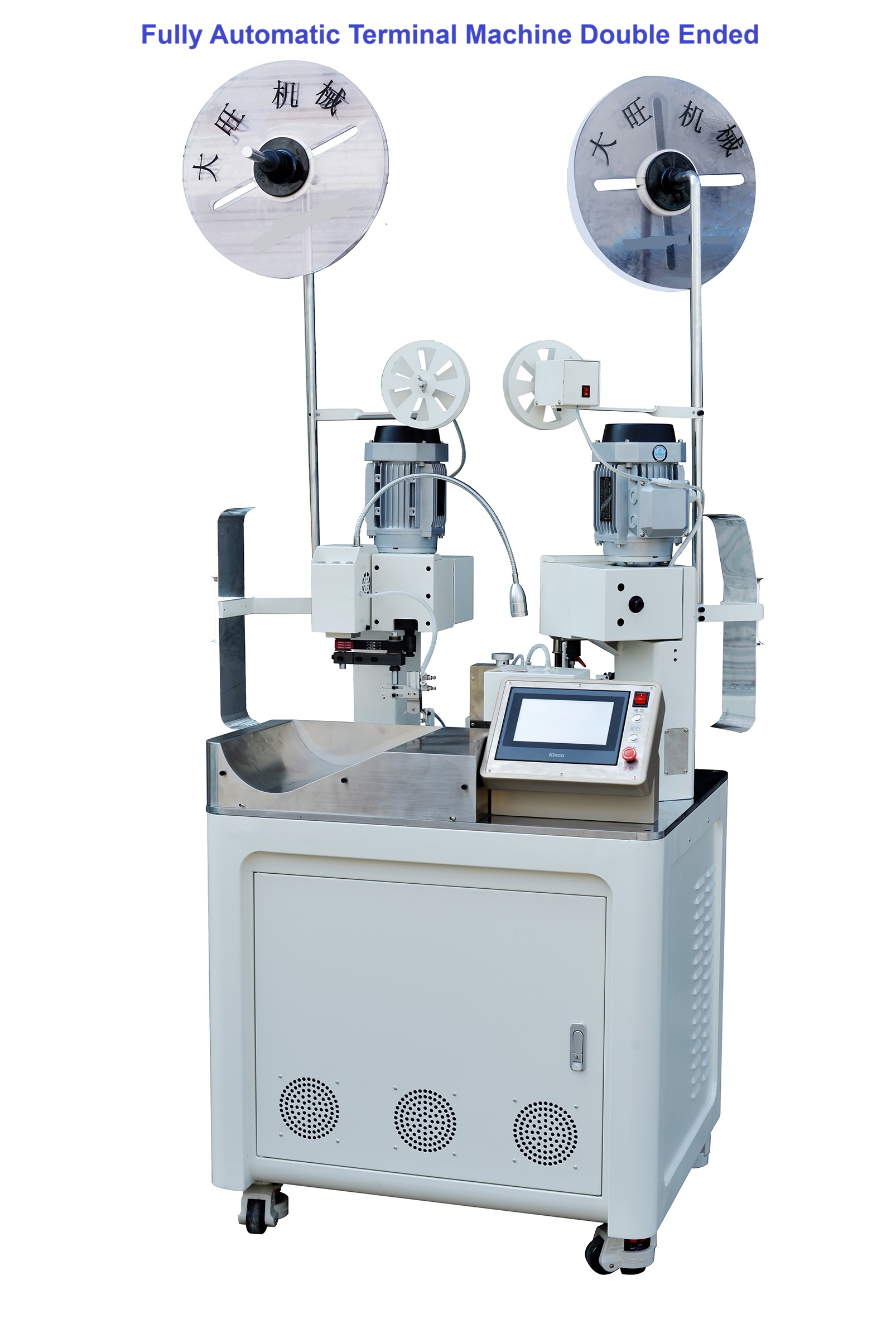

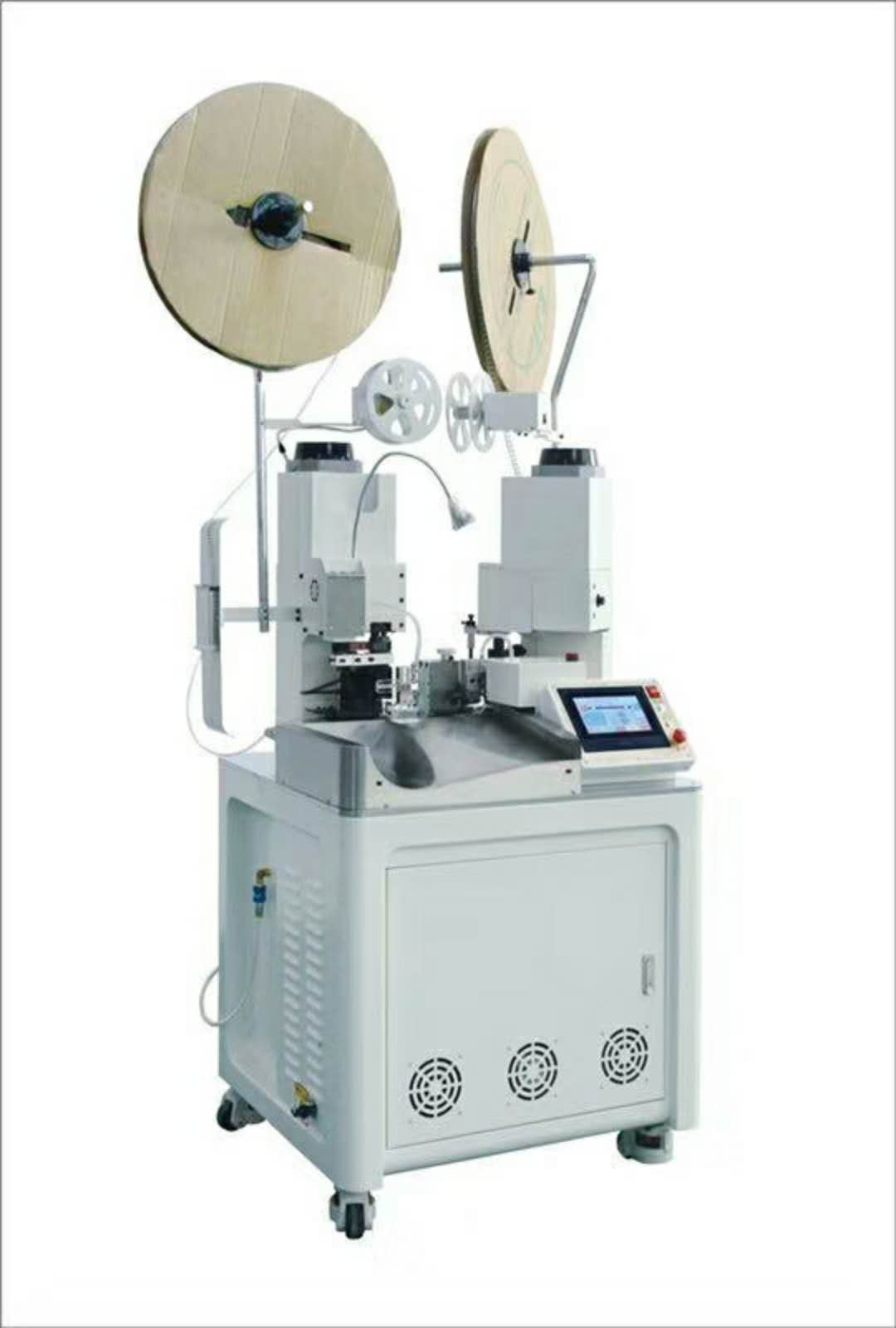

Fully Automatic Double-Ended Terminal Machine - FDGS12

Product Overview:

The Fully Automatic Double-Ended Terminal Machine (Model: FDGS12) is designed for high-efficiency wire processing, offering cutting, stripping, and crimping functions for both single and double ends. With its compact design and user-friendly interface, this machine is perfect for a wide range of wire processing applications.

Key Features:

Smart & Compact Design: Occupies minimal space while delivering maximum performance.
User-Friendly Interface: Equipped with a KINCO touch screen featuring an intuitive English menu for easy operation.
Quick Changeover: Effortlessly switch between different applicators and materials.
High Precision & Speed: Powered by a high-efficiency stepper drive, ensuring fast and accurate processing.
Easy Maintenance: Designed for hassle-free upkeep, reducing downtime.
Cost-Effective: Offers excellent value for money with its high performance and low operational costs.
Fully Digital Debugging: Simplifies setup and adjustments with advanced digital controls.

Technical Specifications:

Power Supply: AC220V/50/60Hz, Single Phase

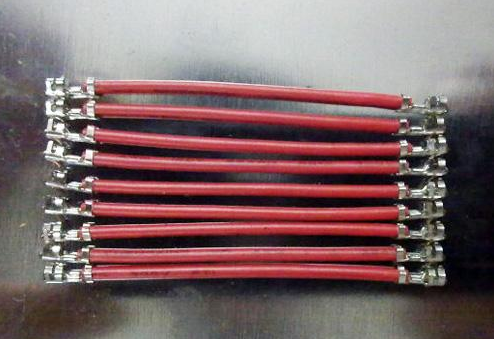

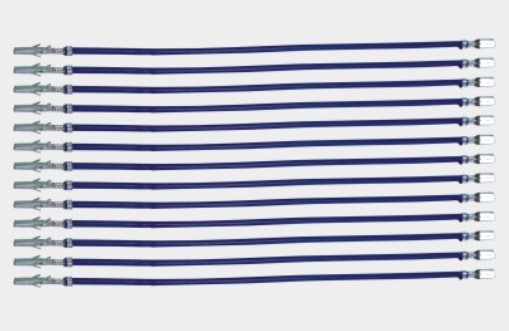

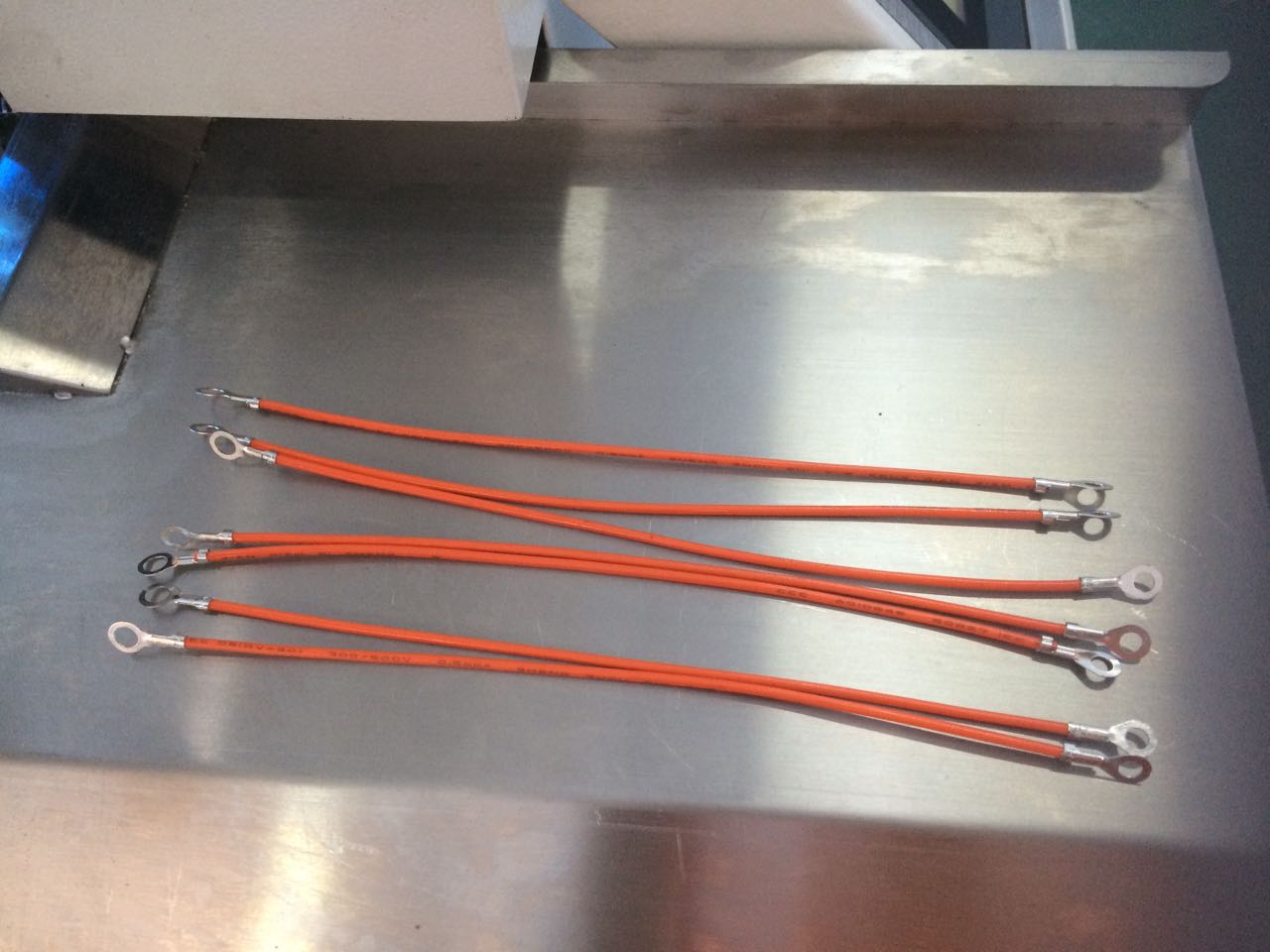

Functions: Wire cutting, single/double-end stripping, single/double-end crimping
Production Capacity: 4000 pieces/hour (for wires up to 100mm in length)
Applicable Wire Range: AWG#28 - AWG#10 (wires up to 6mm²)
Cutting Length: 45mm - 9999mm (customizable for special requirements)
Stripping Length: 1.5mm - 10mm
Crimping Force: 2.0T
Air Pressure: 4 - 6kgf (requires clean, dry air)
Detection Devices: Fiber optic sensor, wire presence detection, terminal crimping detection, wire blockage detection, low air pressure detection
Machine Dimensions: 700W x 800L x 1500H (mm)
Machine Weight: Approx. 358kg

Why Choose Our Terminal Machine?

High Efficiency: Capable of processing up to 4000 wires per hour, making it ideal for high-volume production.
Versatility: Handles a wide range of wire sizes and types, with customizable options available.
Reliability: Equipped with advanced detection systems to ensure consistent quality and minimize errors.
Easy to Operate: The intuitive touch screen interface and fully digital controls make setup and operation straightforward.

Applications:

Our Fully Automatic Double-Ended Terminal Machine is suitable for various industries, including electronics, automotive, and appliance manufacturing, where precision wire processing is essential.

Customization Options:

We offer customized solutions to meet specific production needs, including special cutting lengths and wire sizes.
