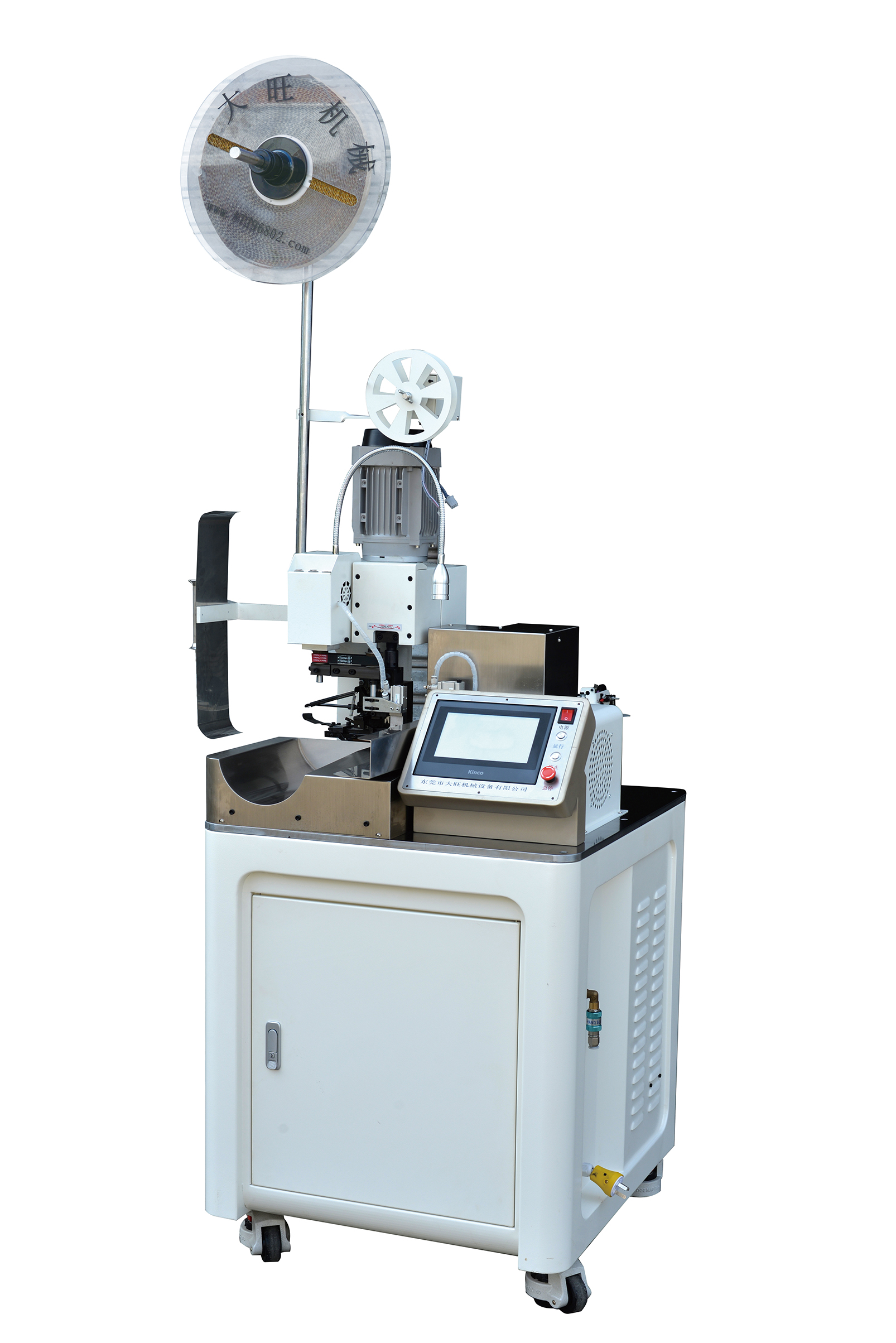

one end automatic wire crimping machine

Automatic single end crimping  machine

Power source: AC220V/50HZ

Function: cable cutting,  one head stripping,  single head crimping

Output: 4200pcs/hour (Length: 300mm)

Applicable cable range: AWG12-28#(bigger or smaller cables, we offer customized machine)

Cutting range:45-9999mm(special requirement is acceptable for customizing)

Stripping length:1.5-10mm

Crimping force: 2.0T(2.5T if optional)

Air pressure:4-6kgf, need dry and clean air

Detective device: cable absence, air pressure, cable knotting or blocking

Machine size: 650*700*1500mm

Net weight: 250KG
